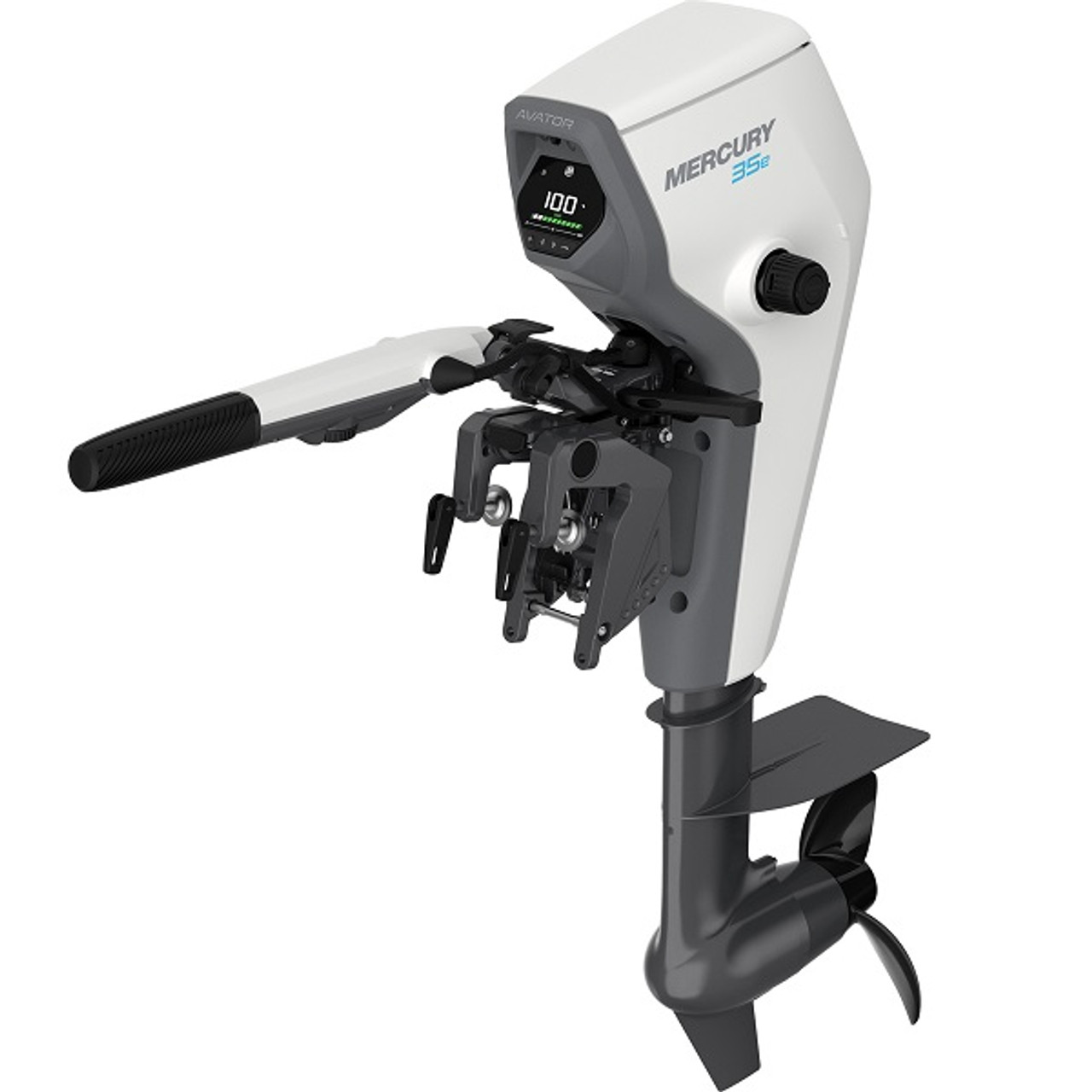

Mercury Avator 35e Tiller 9.9HP Electric Outboard Motor 25" Shaft 35EXLH

Mercury Avator 1005E051A 35e Tiller 9.9HP Electric Outboard Motor 25" Shaft 35EXLH

Power up your outdoor adventures with a Mercury Avator 35e electric outboard motor. Its modular battery system lets you configure your propulsion system for optimal range and runtime. Using the Avator Power Center as a central hub, you can connect two to four batteries. Range-tracking features built into the intelligent digital display and Mercury Avator app let you monitor your outing throughout the day so you can explore with confidence. (Requires Avator Power Center, batteries, charger, display and harnessing. Available separately.)

The Mercury Avator 35e is an innovative electric outboard motor has you covered from the morning bite, to the evening cruise. The modular battery system makes it easy to customize your propulsion system to best suit your needs. This electric outboard delivers similar speed and acceleration performance to a 9.9hp internal combustion outboard. This model features a movable tiller handle that is comfortable to use and can be folded down when not in use.

This model requires at least two 2300Wh batteries hooked up to the power center, an integrated hub that distributes power throughout your Avator system. The power center allows you to connect up to 4 batteries for an extended range and runtime. You can also charge up to 4 connected batteries simultaneously from a single charging port.

Mercury is transforming the boating experience with the Avator producing no exhaust fumes and zero direct emissions. Constructed using corrosion-preventative materials and coatings this electric outboard can be used in both fresh and saltwater environments. The Avator is convenient to store at home or a larger vessel thanks to using no fuel and producing no fumes. The 35e comes with a pre-installed SmartCraft connect module to allow you to connect your outboard to the Mercury Marine App.

Avator Electric Motor Features:

• Connect and simultaneously charge up to four (4) batteries through the Avator Power Center
• Requires at least two 2300Wh batteries
• Capable of acceleration similar to 9.9hp Mercury FourStroke outboard (varies based on boat, load and conditions)
• Up to 18 hours of runtime at 25% throttle and 1 hour at 100% throttle with two (2) 2300Wh batteries (varies based on boat, load and conditions)
• Charge a 2300Wh battery in as little as 10 hours with the 230W charger - available 520W charger cuts time by more than half
• Pairs with digital controls and display that tracks battery level, remaining runtime and more
• Pre-installed SmartCraft Connect module for accessing performance data, range estimates and other features through the Mercury Marine app
• Rugged, water-resistent lithium-ion batteries
• Industry-exclusive high-torque, high-efficiency transverse flux motor
• Includes prop. Requires Avator Power Center, batteries, charger, display, controls and harnessing - available separately. Contact dealer for requirements

Product Specifications:

• Smartcraft Compatible: Yes
• Steering Type: Tiller
• Trim System: Manual
• Gearcase: Direct Drive
• Horse Power: 5
• Battery: 2300 Wh - Li ion NMC
• Battery IP Rating: IP67
• Battery Type: 21166
• Battery Weight: 48lbs
• Charger (Standard): 230w
• Input Power: 4400W
• Rated Prop Shaft Power: 3700W
• Rated Voltage: 48V
• Shaft Length: 25" (Extra Long)
• Standard Propeller: 7P
• Total Weight (Excluding Battery): 47lbs

Mercury Avator 35e Construction Details

Modular Batteries

The 35e electric outboard motor requires an Avator power center with at least 2 batteries for operation.

Multi-Purpose Tiller Handle

Requiring no tools, the tiller handle can adjust up, down, left, or right for comfortable steering from any position.

Power Center

Integrated hub that distributes power from the battery bank throughout the system. Can simultaneously charge up to four connected batteries from a single charging port

Strong Transverse Flux Motor

Delivers immediate torque with reliable power. Turns a high thrust three blade prop for efficient batter life.
