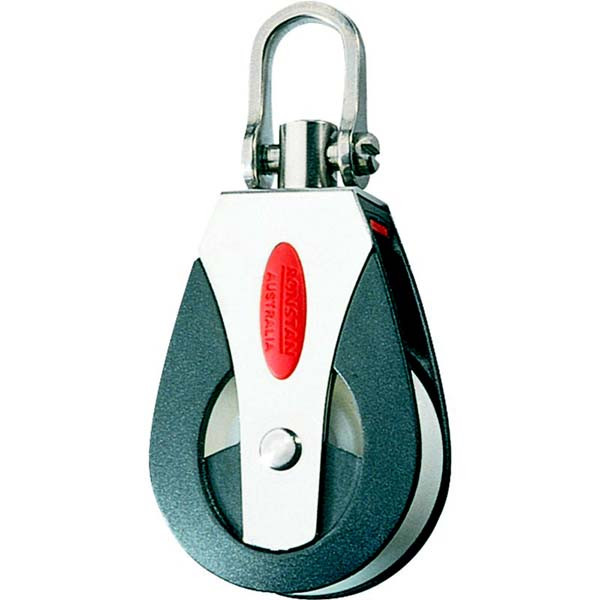

Ronstan Series 40 All Purpose Block - Single - Universal Head

Ronstan Series 40 All Purpose Block - Single - Universal Head

Ronstan Series 40 All Purpose Block - Single - Universal Head
SKU:
XRON-RF41100
$27.95
$22.94
$5.01
Availability:
Ships next business day if ordered in the next:
Frequently Bought Together

Series 40 All Purpose Block - Single - Universal Head

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

Features:

  • Exceptionally high working loads
  • Low maintenance, long service life
  • Self-lubricating sheave
  • Captive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines


Applications:
  • Mainsheet
  • Halyard
  • Vang
  • Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')


Materials:
  • U.V. stabilized Acetal sheaves
  • Impact and U.V. resistant, fiber reinforced Nylon cheeks
  • Grade 316 stainless steel bearing race
  • Grade 316 stainless steel load strap and head fitting


Specifications:
Sheave Ø: 40mm(1-9/16")
Max. Rope Ø: 10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.: 400kg(880lbs)
B. L.: 1,000kg(2,200lbs)
Weight: 71g(2.5oz)
